Only US $2738.77 LY CNC Engraving Machine 6090 Z-VFD 1.5KW 4 Axes Drilling Router for hard metal no custom duty to R

by my machine is BIG on Juli 25, 2016 in cnc, machine, router

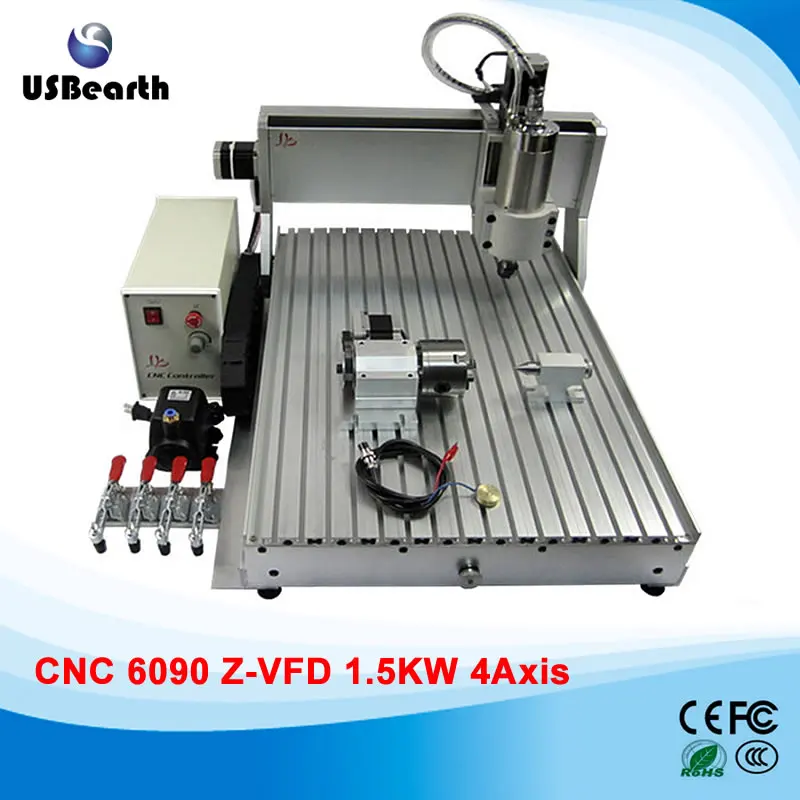

LY CNC Engraving Machine 6090 Z-VFD 1.5KW 4 Axes Drilling Router for hard metal no custom duty to R

[32865524157] Introduction The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. Technical Parameters LYCNC6090Z-VFD1.5KW 3axis engraving machine parameters: Machine Dimensions：　1200X780X580mm Rack material：　6061 and 6063 Hard aluminum alloy 　(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) Engraving area：　900X600mm Z-Axis Stroke：　125mm, Engraving depth depends on the length of the tool edge Acceptable material thickness：　≤125mm Rail type：　Chromeplate shaft + Linear Bearings, Surface hardening 61HRC Type of screw：　Ball screw 1605, Pitch 4mm Spindle motor：　1.5KW VFD water cooling spindle , 0-24000r/min Collet type：　ER11,1/8"(3.175mm) Collet Stepper motor and drive：　two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. Maximum operating speed：　4000mm/min (Engraving speed :　300-3000mm/min) Repeat positioning Accuracy：　0.03mm Communication interface：　Parallel port Software Compatability：　Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) Command code：　G code/.nc/.ncc/.tab/.txt Machine weight：　110kg Rotation Axis (4th Axis) Description: Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type / 2A two phase 4 line Positioning accuracy: 0.075 ° The machine already assembled & tested well, can directly use after take them out from package Packing list: 1× Engraving machine 1× Control box 1× Power cable 1× control line 1× Parallel port cable 25pin 1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs) 1× tool auto-checking instrument 1x Rotation axis 1x water pump 1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)
