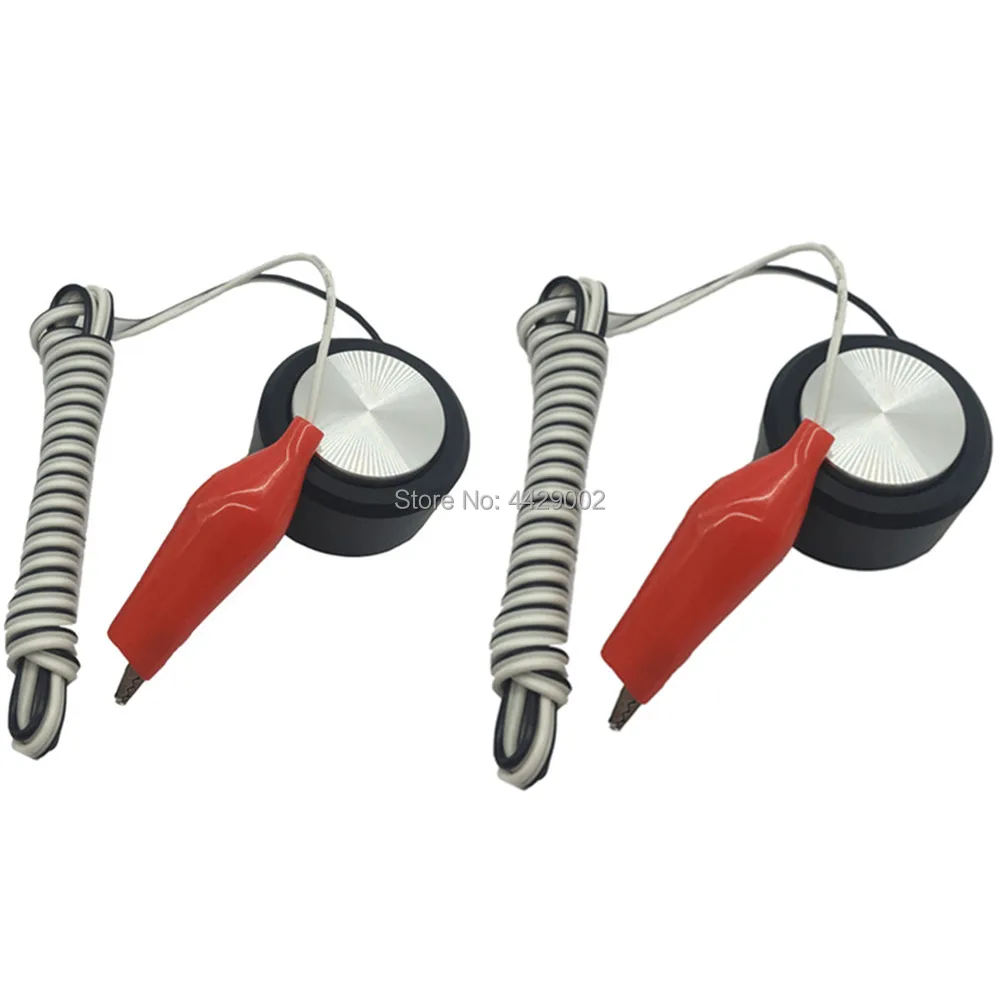

2pcs CNC Z Axis Router Mill Zero Check Touch Plate Mach3 Setting Probe Setting Probe Milling CNC En
[32915256043] Description: CNC Router Mill Tool Setting Touch Plate These touch plates make setting your tool height and zeroing your z-axis a breeze. These are fully functional in Mach 3 and many other CNC controller software. Overall diameter is 1-3/8". Cord is approximately 4ft. long. Cord is attached to plate on one wire and has an alligator clip on the other to ground the spindle/router and compete the circuit. Other end of wire is ready to be wired as a touch probe into your CNC electronics. Specification: Diameter : Approx 3.5 cm Thickness : Approx 2 cm Two ways to connect this item: if your interface board has the limit switch port or other probe port, you can connect it to that port if your interface board does not have that port, your driver board has that port, you can connect it to the driver board's limit switch port then in the Mach 3, you need to setup the probe(Mach3 --- Config---Ports and Pins---Input signals Probe enabled , the pin number type the one you use) and the Auto-Tool-Zero. in the attachment, it is the code, you can edit it as your requirements Package included: 2pcs CNC Router
US $5.64Grab Now 30% US $3.95
